Jinri 6
210mm PERC Half Cell Solar Modules
22.5%
Module Efficiency
30Year
Linear Power Warranty
210mm
Solar PV Cell Type
700W
Max. Output Power

Solar Module
595-675W
In order to create the ultimate cost-effective product, Jinri Solar launched a new generation of ultra-high efficiency modules, the Jinri 6 series. The new series integrates 210mm silicon wafers, with PERC, bifacial, multi-busbar cell technology and high-density encapsulation. The maximum power output on the front side of the two formats, 60 and 66, max. output power reach 675W. Meanwhile, based on different installation environments, the rear side power generation gain is between 10-30%.

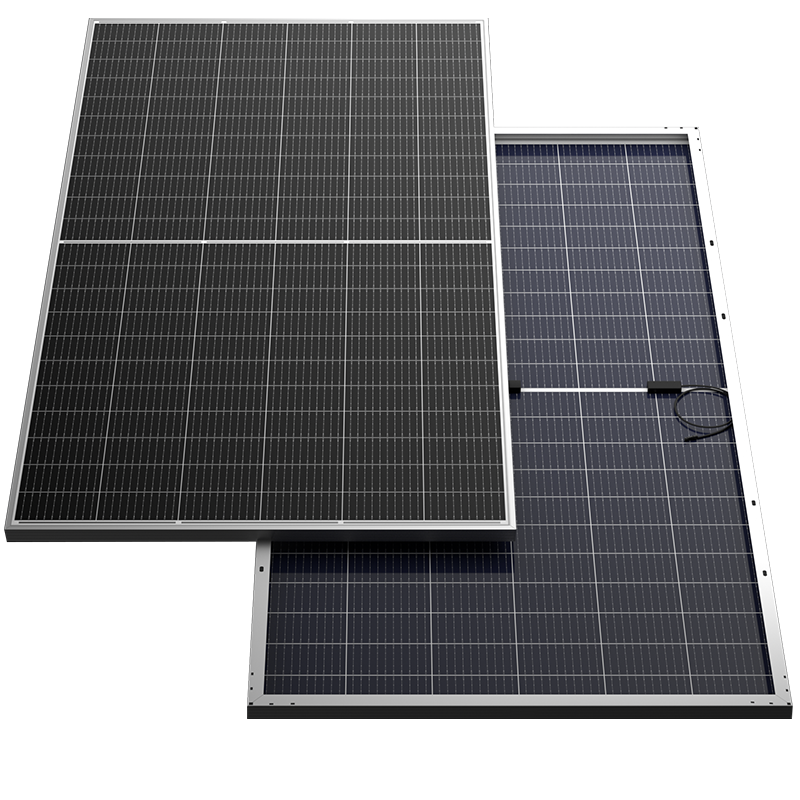

650 – 675 Watt
Technology
PERC, Bifacial, MBB, Dual Glass
Cells Layout
132 half cells (6×22))
Operating Temperature
-40 – +85°C
Dimensions
2384 x 1303 x 30/35mm
Warranty
30-year performance guarantee
Max. Efficiency
22.5%
Certificates
CE / TUV / UL
Design
Silver / Black frame
Dual glass / Glass & backsheet

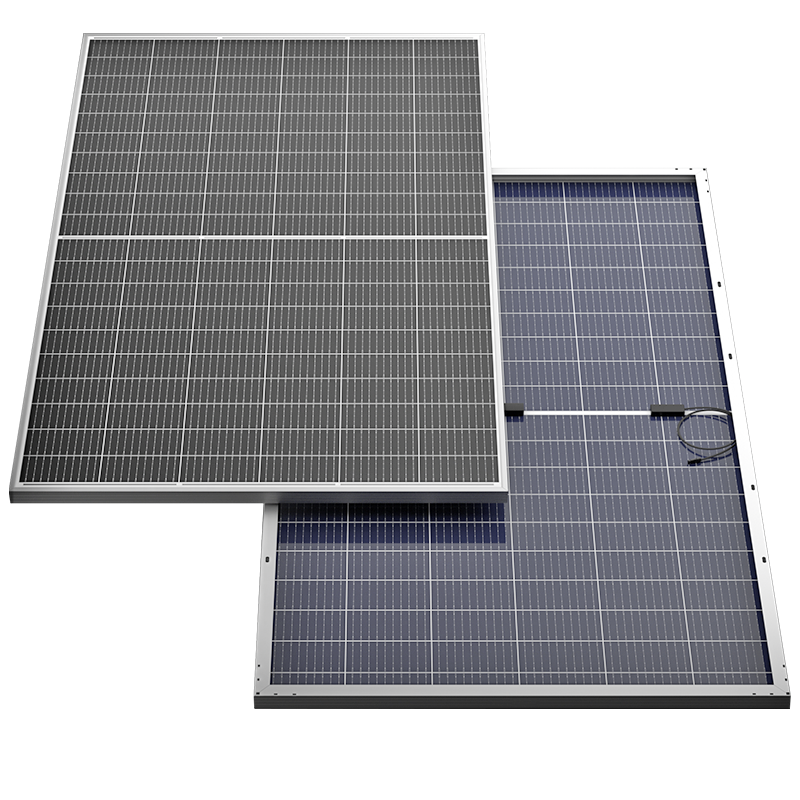

590-615 Watt
Technology
PERC, bifacial, MBB, Dual Glass
Cells Layout
120 half cells (6×20)
Operating Temperature
-40 – +85°C
Dimensions
2172 x 1303 x 35mm
Warranty
30-year performance guarantee
Max. Efficiency
22.4%
Certificates
CE / TUV / UL
Design
Silver / Black frame
Dual glass / Glass & backsheet
