Jinri 5
182mm PERC Half Cell Solar Modules
22.19%
Module Efficiency
30Year
Linear Power Warranty
182mm
Solar PV Cell Type
560W
Max. Output Power
Solar Module
400-560W

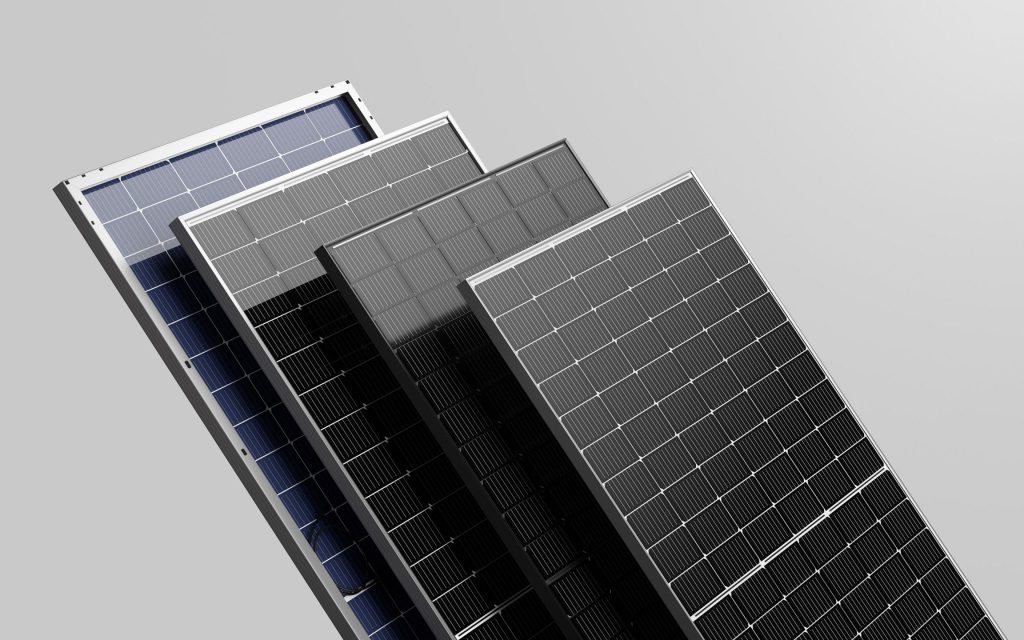

Jinri Solar focuses on value creation and in the winter of 2020 launches a new generation of high efficiency PV modules, the Jinri 5 series. The new series integrates 182mm large-size silicon wafers with PERC, multi-busbar, half-cell, bifacial technologies and high-density encapsulation. Technology integration enables the Jinri 5 series to increase the efficiency of the module up to 22.19%, and a maximum power output on the front side of 560W.
535-560 Watt
Technology
PERC, bifacial, MBB, half cell
Cells Layout
144 Half Cells (6×24)
Operating Temperature
-40 – +85°C
Dimensions
2279 x 1134 x 30/35mm
Warranty
30-year performance guarantee
Max. Efficiency
22.19%
Certificates
CE / TUV / UL
Design
Silver / Black frame
Dual glass / Glass & backsheet

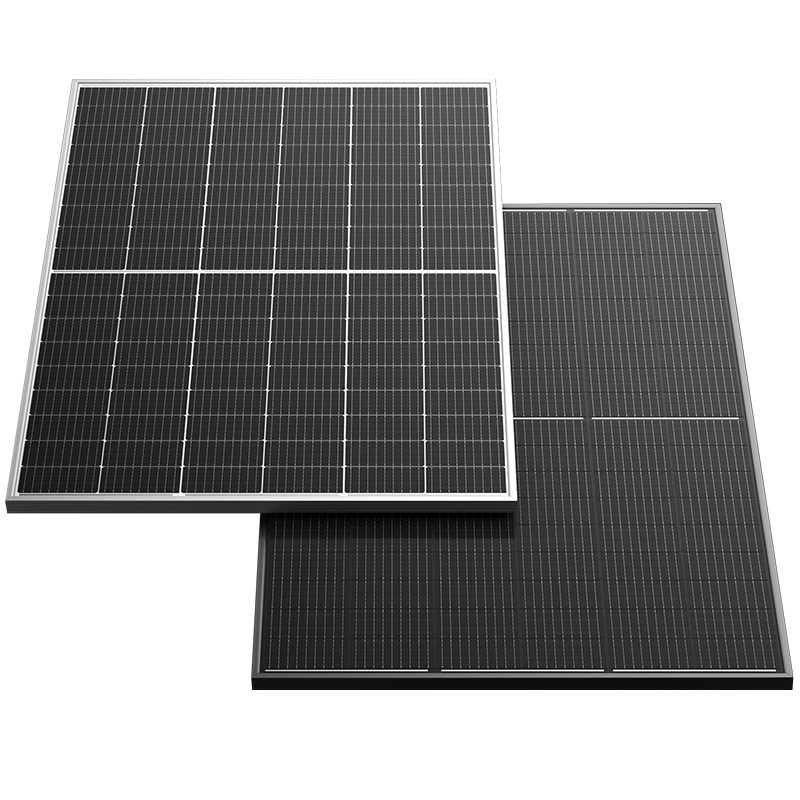

400-420 Watt
Technology
PERC, bifacial, MBB, half cell
Cells Layout
108 Half Cells (6×18)
Operating Temperature
-40 – +85°C
Dimensions
1722 x 1134 x 30mm
Warranty
30-year performance guarantee
Max. Efficiency
21.94%
Certificates
CE / TUV / UL
Design
Silver / Black frame
White / Black backsheet
